Elrec Pro

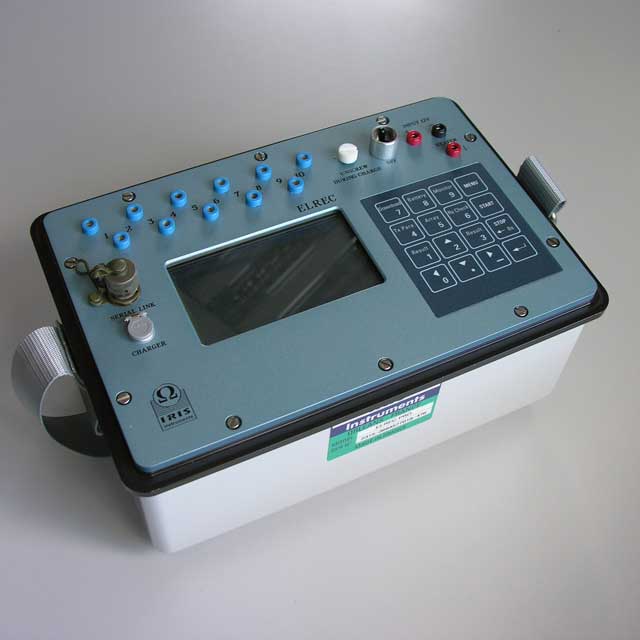

The Elrec Pro is a 10 channel Induced Polarisation (IP) and Resistivity receiver designed to improve productivity when recording deep profiles and soundings. It comes in standard and switch configurations. Beside the classical arithmetic and logarithmic modes, ELREC Pro also offers a Cole-Cole mode and twenty fully programmable windows for a higher flexibility in the definition of the IP decay curve.
A setup wizard guides the operator through each parameter to ensure the instrument is configured correctly. The system includes built-in quality control tools to aid the operator validate measurements during data acquisition, and displays IP decay curves in real time.
The Elrec Pro is designed for use with the TIPIX and VIP high-power transmitters’ series. The Elrec automatically synchronizes (and re-synchronizes at each new pulse) with the transmission signal, through the waveform recognition process, ensuring high measurement repeatability.
Complex measurement sequences can be designed and uploaded to the system via Electre II or Electre Pro software.
Large 2D and 3D surveys.
The Elrec Pro can be used in conjunction with the Switch Pro box(es) to increase the spread to 96 electrodes. When operating the system in this manner, complex measurement sequences can be designed and uploaded to the system via Electre II or Electre Pro software.
The Elrec Pro Switch allows to switch the ten channels of the receiver among 48, 72, 96, 120… electrodes. In practice, this allows to read very large combinations of electrode without having to connect/disconnect several time wires and electrodes. Acquisition time can be strongly reduced compared to receivers featuring a high number of channels but no automatic switching capability.
Technical Characteristics
ELREC PRO | ELREC PRO SWITCH | |
Pulse duration | 1s, 2s, 4s, or 8s | 1s, 2s, 4s, or 8s |
Channels | 10 true differential inputs | 10 true differential inputs, 48/72/96/120 switchs |
Input Impedance | 100 MOhms | 100 MOhms |
Input Voltage | 15V, automatic gain, input protection 1000V | 15V, automatic gain, input protection 1000V |
Readings | Resistivity, Induced polarization Up to 20 windows), Self potential, Quality control, and optional full waveform l | Resistivity, Induced polarization Up to 20 windows), Self potential, Quality control, and optional full waveform l |
Resolution / Accuracy | 1 µV / 0.2% | 1 µV / 0.2% |
GPS | Location (coordinates), synchronisation | Location (coordinates), synchronisation |
General | ||
Noise Reduction | power line rejection, SP linear drift correction | power line rejection, SP linear drift correction |
Storage | 44800 readings, up to 8 hours full waveform, stored on solid state memory | 44800 readings, up to 8 hours full waveform, stored on solid state memory |
Weight | 6.4 Kg Kg (internal battery – no switch), 31x21x21cm height depends on switch, fiberglass casing, weather proof | 6.4 Kg Kg (internal battery – no switch), 31x21x21cm height depends on switch, fiberglass casing, weather proof |
Operating T | -20 to +70°C | -20 to +70°C |
