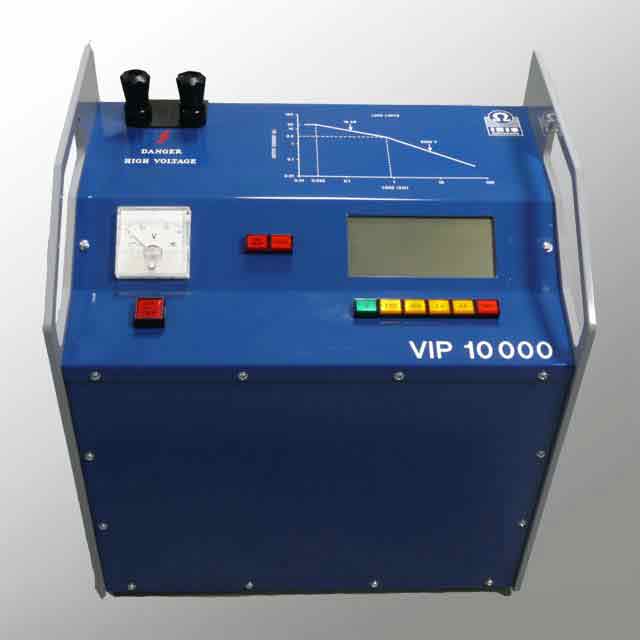

VIP 10000

VIP 10000

The VIP series of electrical transmitters are purposely designed for deep induced polarisation or resistivity sounding investigations. The Vip injects a regulated current into the ground.
Predominantly used as part of mineral exploration studies, the VIP series include three systems with different power specifications. This transmitter is generally used together with V-Fullwavers or Elrec Pro receivers.
To simplify operation, the instrument manages the injection current and voltage automatically. When starting, the VIP automatically operates several safe tests to ensure that the device is properly set..

All VIP systems offer four operating modes:
• Time domain waveform, On Time (Ton) and Off time (Toff),
• Frequency domain waveform, outputting two user-selectable frequencies from 0.0625Hz and 4Hz.
• Dual frequency mode, a base frequency is selected from 0.0625 to 0.5Hz and the high frequency is fixed at 8 times the base frequency.
• Continuous mode, injects a constant DC current into the ground.

The VIP 4000 / 5000 / 1000 power makes it suitable for use in almost all geological formations. In situation where a wired synchronization is not possible, the VIP can be operated alongside the I-Fullwaver for accurate absolute time stamps when recording precise full waveform time domain measurements.

Technical Characteristics

VIP 10000
Voltage 0 – 6000 Vpp
Current Regulated 0 – 20000 mA
Power 0-10000
Frequency Option 0.0625Hz to 4Hz by factors of 2
Pulse duration 500ms,1s, 2s, 4s, 8s
Readings Displays output current, output voltage, contact resistance and input power
Resolution / Accuracy 1mA / 1%
Protection Short circuits, thermal protection, Input overvoltage and under-voltage
Power requirements 175 to 270VAC, 48-450Hz three-phases generator ( or single phase at reduced power )
Weight 36 Kg (55x51x37cm)
Operating T -40 to +50°C
